EPIX10+ - 10" Auxiliary Light with Strobe Light (White/Amber) (LEDSON)

EPIX10+ - 10" Auxiliary Light with Strobe Light (White/Amber) (LEDSON)

The Ledson Epix10+ Strobe is an innovative series of auxiliary headlights that will take your vehicle to the next level. It features five different strobe patterns, including an R65-approved one. With their Swedish design (developed by Ledson) and outstanding performance, these auxiliary headlights give your vehicle a truly unique and exclusive look that is guaranteed to turn heads! Experience exceptional brightness and design in perfect harmony.

Strobe pattern

Single flash (ECE R65 approved), double flash, triple flash, quadruple flash, continuous hyper flash.

synchronization

Epix10+ Strobe lights can be synchronized with each other, so that all lights use the same flash pattern and flash in unison. However, you also have the option of using different flash patterns. You can synchronize and use alternating flash patterns with an unlimited number of lights.

Dynamic position light

The Epix10+ Strobe activates dynamically, with a striking sweeping motion that elegantly moves the light from one side of the headlight to the other before it fully illuminates. This effect gives you and your vehicle a distinctive and unique signature.

Pulse-controlled power boost

The Epix10 Strobe is equipped with Ledson Powerboost – an additional power mode for those moments when you need (or simply want) maximum brightness. This extra brightness is activated by simply flipping the high beam lever.

Note: Your auxiliary light is supplied in E-approved mode. Please follow the instructions to activate the power boost mode.

Characteristics

• Stroboscopic light with five different flash patterns, including one with R65 approval.

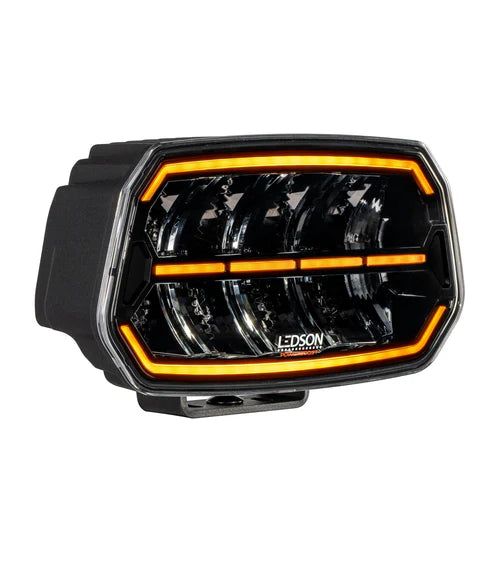

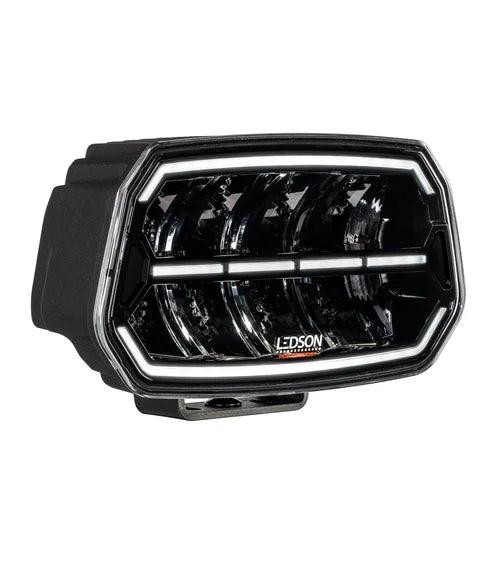

• Selectable position light with dynamic activation (yellow-orange or xenon white, connect the colour of your choice)
• Range in E-approved mode: 359 m (1 Lux)
• Range in Powerboost mode: 647 m (1 Lux)
• High beam pattern: Improves the vehicle's standard high beam pattern.
• E-mark: ECE R112 (Ref. 30), R7 (white position light)
• EMC certified: ECE R10 (does not interfere with radio communications)
• 11,500 lumens (theoretical), 8,200 lumens (actual)
• Neutral white light: 5000K
• ETM (Electronic Thermal Management): Adjusts the diode power for optimal lifespan depending on the temperature.
• Optical system with side reflection
• Pressure equalization membrane
• Aluminium heat sink
• Adjustable stainless steel bracket
• Polycarbonate lens
• 36-month warranty

Technical data

• 150W (10 x 15W Cree LED), strobe light 20W (4 x 5W LED)
• IP69K (water and dust resistant)
• Cable with 6-pin DT connector
• Voltage: 9-36 V
• Current draw in E-approved mode: 2.2A @ 12V and 1.1A @ 24V (high beam only, no position light)
• Current draw in high beam power boost mode: 10.6A @ 12V and 4.8A @ 24V (high beam only, no position light)

Dimensions and weight:

• Width: 247 mm
• Height: 145 mm (including bracket)
• Depth: 86 mm
• Weight: 1.6 kg

Included in the delivery:

• A Ledson Epix10+ strobe LED auxiliary light 10"
• Mounting bracket, bolts and screws for single or double mounting points
• DT connector (6-pin)
• Installation instructions

Cable instructions (detailed instructions included)

• Red: Additional light (+)
• Black: Auxiliary light / position light (- ground)
• White: Position light (+) White light
• Yellow: Position light (+) Yellow-orange light
• Green: Strobe light (+)
• Blue: Synchronization & Pattern (+)
• Brown: Alternating (+)

Note: The DT connector must not be cut off, as this increases the risk of moisture damage and will void the warranty.
