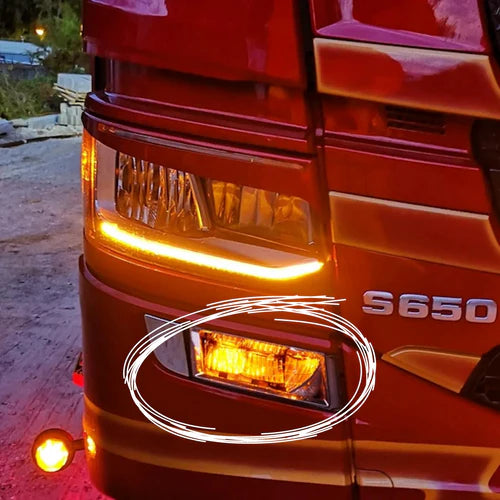

Fog lights (LED) - Suitable for Scania Next Gen 2016+

Fog lights. Suitable for Scania Next-Gen 2016+

LED light sources with 18 high-performance LEDs, specifically designed for installation in Scania's original LED fog lights. The light is glare-free, can be used as a position light, and is available in cool white and yellow.

The original fog lights remain fully functional thanks to the intelligent design. The additional light source ensures that light is always present throughout the entire fog light reflector. The light source is screwed onto the existing fog light.

Screws and spacers are included and must be used during installation. A 3-meter cable is also included.

installation

• Remove the connectors from the original lights.
• Remove the screws that secure the original lights.
• Remove the lights from the heat sink.
• Remove the old cooling paste and clean the surface thoroughly.

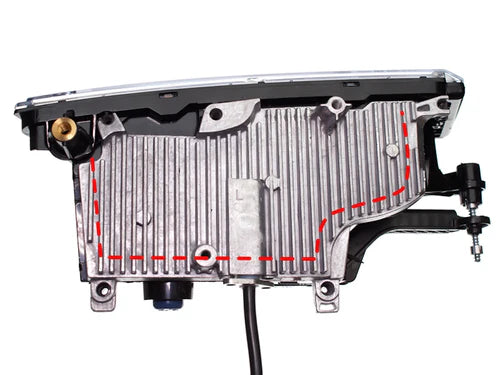

• Drill a hole in the lamp at the point marked in the illustration and feed the lamp's cable through the hole. Be careful not to damage the casing.
• Remove the two outer screws from the original light source and place two spacers over the screw holes. Attach the fog lights to the existing light source with the LEDs switched off. Secure the light source using the two included M4x8mm screws. Finally, glue and screw the lamp back together.
• Connect the lamp, for example, to the existing position light.
